Description

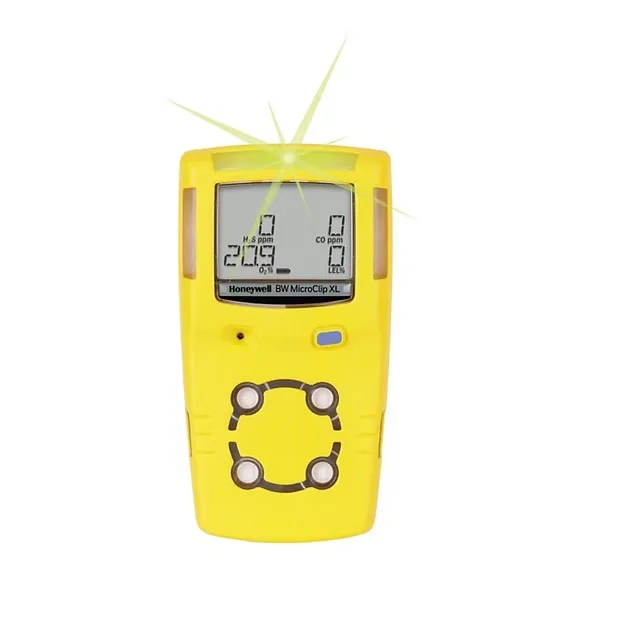

The industrial Honeywell BW™ MicroClip Series is the world’s most popular multi-gas portable detector, delivering long runtime and reliability — plus small size, low cost and the easiest user experience.

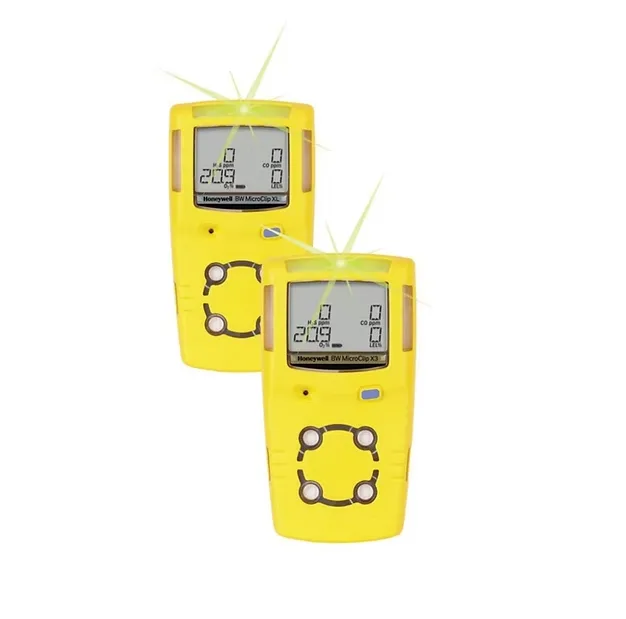

MCX3-XWHM-Y-OR / MCXL-XWHM-Y-OR
(MICRO CHIP XL & MICROCHIP X3)
Features & Benefits
- Honeywell BW™ MicroClip X3 for extended reliability with 3-year warranty
- Honeywell BW™ MicroClip XL for standard operation with 2-year warranty
- Guaranteed to run an entire shift — even at -4°F (-20°C)
- IP68 rating — unmatched water protection, giving workers the confidence that it will stand up to challenging conditions.
- Compact, lightweight and easy to use — with one-button operation and no extensive training
- Device management with Honeywell Safety Suite
- Simultaneously monitor for up to four gases including O2, H2S, CO and combustibles
- Battery runtime of 18 hours in normal temperatures; cold weather guarantee of at least 12 hour runtime for full warranty period.
Quick Specs
- Detects H2S, CO, O2 & LEL
- Size: 11.3 x 6.0 x 3.1 cm / 4.4 x 2.4 x 1.2 in.
- Weight: 190 g / 6.7 oz.
- Temperature: -4 to +122°F / -20 to +50°C
- Humidity: 0% – 95% RH (non-condensing)
- Flashing green IntelliFlash™ light for compliance at a glance
- Reflex™ Technology ensures sensor responsiveness for safety, uptime and worker confidence
| BW MicroClip XL Detectors |
| BW MicroClip XL 4-Gas Detector |
| Combustible (% LEL), oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO) – yellow housing | MCXL-XWHM-Y-OR |
| BW MicroClip XL 3-Gas Detector | |
| Oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO) – yellow housing | MCXL-X0HM-Y-OR |
| Combustible (% LEL), oxygen (O2), carbon monoxide (CO) – yellow housing | MCXL-XW0M-Y-OR |
| Combustible (% LEL), oxygen (O2), hydrogen sulfide (H2S) – yellow housing | MCXL-XWH0-Y-OR |
| Combustible (% LEL unfiltered), oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO) -yellow housing | MCXL-XUHM-Y-OR |
| Combustible (% LEL unfiltered), oxygen (O2), hydrogen sulfide (H2S) – yellow housing | MCXL-XUH0-Y-OR |
| Combustible (% LEL unfiltered), oxygen (O2), carbon monoxide (CO) – yellow housing | MCXL-XU0M-Y-OR |
| BW MicroClip XL 2-Gas Detector | |
| Combustible (% LEL unfiltered), oxygen (O2) – yellow housing | MCXL-XU00-Y-OR |
| Hydrogen sulfide (H2S), carbon monoxide (CO) – yellow housing | MCXL-00HM-Y-OR |
| Oxygen (O2), hydrogen sulfide (H2S) – yellow housing | MCXL-X0H0-Y-OR |
| Oxygen (O2), carbon monoxide (CO) – yellow housing | MCXL-X00M-Y-OR |
| BW MicroClip X3 Detectors | |
| BW MicroClip X3 4-Gas Detector | |
| Combustible (% LEL), oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO) – yellow housing | MCX3-XWHM-Y-OR |
| Combustible (% LEL unfiltered), oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO) – yellow housing | MCX3-XUHM-Y-OR |
| BW MicroClip X3 3-Gas Detector | |
| Combustible (% LEL), oxygen (O2), hydrogen sulfide (H2S) – yellow housing | MCX3-XWH0-Y-OR |
| Combustible (% LEL), oxygen (O2), carbon monoxide (CO) – yellow housing | MCX3-XW0M-Y-OR |
| Combustible (% LEL unfiltered), oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO) – yellow housing | MCX3-XUH0-Y-OR |
| Combustible (% LEL unfiltered), oxygen (O2), carbon monoxide (CO) – yellow housing | MCX3-XU0M-Y-OR |
| Oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO) – yellow housing | MCX3-X0HM-Y-OR |
| BW MicroClip X3 2-Gas Detector | |
| Combustible (% LEL), oxygen (O2) – yellow housing | MCX3-XW00-Y-OR |
| Combustible (% LEL unfiltered), oxygen (O2) – yellow housing | MCX3-XU00-Y-OR |
| Hydrogen sulfide (H2S), carbon monoxide (CO) – yellow housing | MCX3-00HM-Y-OR |
| Oxygen (O2), hydrogen sulfide (H2S) – yellow housing | MCX3-X0H0-Y-OR |
| Oxygen (O2), carbon monoxide (CO) – yellow housing | MCX3-X00M-Y-OR |
