Description
IBUKI A150ESSH AIR HORN, C/W: HEATER, 220VAC, Vessel Length 75-200m
| HORN-IBU-A3D1P-H | AIR HORN c/w MAGNET Valve & Heater , 110VAC | A150ESSH |
HORN-IBU-A3D2P-H
“IBUKI” MODEL: A150ESSH AIR HORN, C/W: HEATER, 220VAC
-MAGNET VALVE, 220VAC & MANUAL PULL VALVE
-HEATER, 220VAC
LLYODS APPROVED FOR VESSEL FROM 75M TO LESS THAN 200MTR LG.
ORIGIN: JAPAN
Heater and snow guard are available for use in cold area.
Detail
IBUKI A150 Series air horn employs a diaphragm driven by compressed-air, and operation is controlled either manually or via a solenoid.
A150ESS model is compact and light weight body.

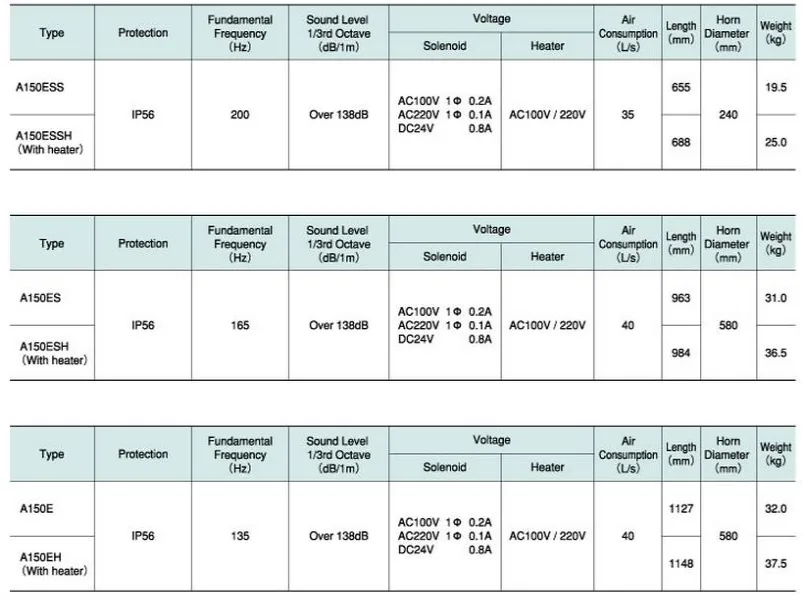

| Type | A150ESS | A150ESSH (With Heater) |
A150ES | A150ESH (With Heater) |
A150E | A150EH (With Heater) |
| Protection | IP56 | |||||
| Fundamental Frequency (Hz) | 200 | 165 | 135 | |||
| Sound Level 1/3rd Octave (dB/1m) | Over 138dB | |||||
| Voltage | Solenoid | AC100V 1Ø 0.2A AC220V 1Ø 0.1A DC24V 0.8A |
||||
| Heater | AC100V / 220V | |||||
| Air Consumption (L/s) | 35 | 40 | ||||
| Length (mm) | 655 | 688 | 963 | 984 | 1127 | 1148 |
| Horn Diameter (mm) | 240 | 580 | ||||
| Weight (kg) | 19.5 | 25 | 31 | 36.5 | 32 | 37.5 |
IMPA CODE: 370105, 370106, 370107, 370185, 370186, 370187, 370188, 370189, 370190, 370191, 370192, 370193, 370195, 370196, 370197, 370198, 370199
NKK Approved

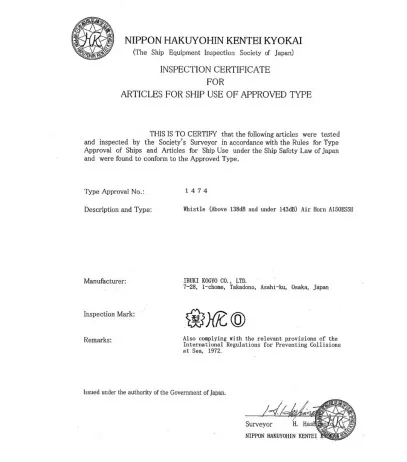

HK Approved
370191AIR HORN FOR HULL L 75-200MTR
Required installation under the international regulations for preventing collisions at sea. The frequency of the horns shall be between 130 – 350 Hz for a vessel greater than 75 mtrs but less than 200 mtrs in length, and 70 – 200 Hz for a vessel 200 mtrs or more in length.
IBUKI A150ESSH CLASS II AIR HORN AC230V WITH HEATER
| Short Description | Class II air horn with heater for vessels 75m to 200m in length IP56 |
|---|---|
| Description | A150ESSH series air horn employs a diaphragm driven by compressed air and operation is controlled either manually or solenoid; Heater use in cold area |
| Application | For vessels 75m to 200m in length |
