Description
IBUKI E150 Magnet Horn, Vessel Length 20-75m
HORN-IBU-E2B2W-
*IBUKI E150 HORN, WHITE, 24VDC C/W: TOGGLE SWITCH
– 01 PCE OSCILLATOR UNIT
– WITHOUT HEATER
LLYODS APPROVED FOR VESSELS FROM 20M TO LESS THAN 75M LENGTH
ORIGIN: JAPAN
For the vessel length 20-75m
E150 Magnet horn with heater
Lloyd type approval
E150 magnet horn is electrically driven and equipped the electro-magnet & Oscillator unit to be sounded.
Frequency: 320Hz
Sound pressure level (dB/1m): >130dB
Power supply: DC24V
AC220V(Heater)
IBUKI E150 Magnet horn is compact and lightweight body driven by electric power source. Tone is generated via electro-magnet to diaphragm vibration. The horn unit and oscillator are one unit. The working voltage is DC24V as standard, AC100V and 220V are available as options with a converter.
Heater is available for use in cold areas.
IMPA CODE: 370105, 370106, 370107, 370185, 370186, 370187, 370188, 370189, 370190, 370191, 370192, 370193, 370195, 370196, 370197, 370198, 370199
| AIR HORN | 370191 |
NKK Approved
HK Approved

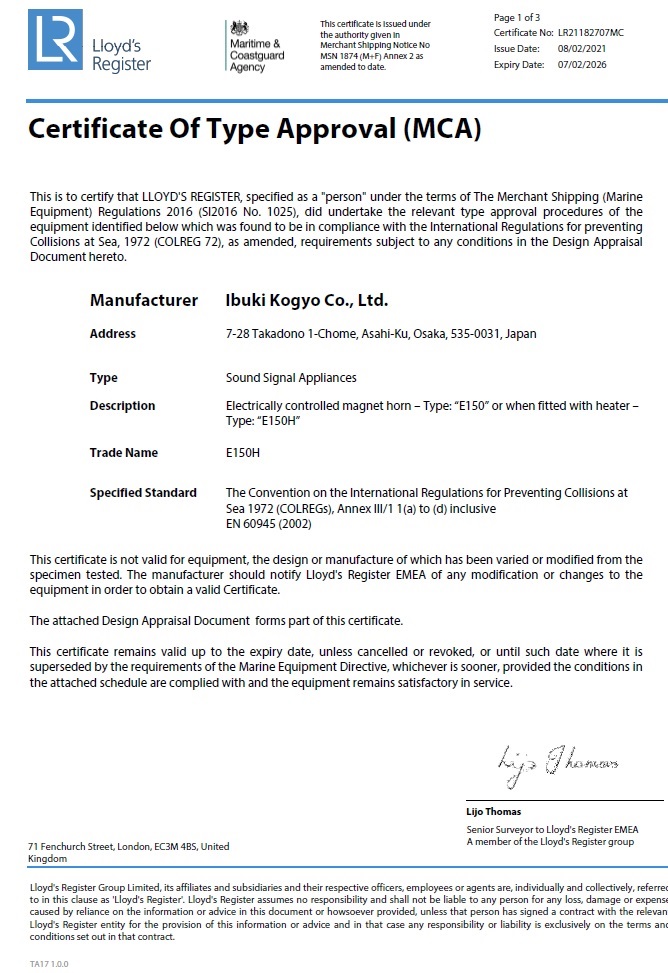

Certificate Of Type Approval (MCA)
Certificate Of Type Approval (MCA)
Certificate No: LR21182707MC
This certificate is issued under
the authority given in
Merchant Shipping Notice No
MSN 1874 (M+F) Annex 2 as
amended to date.
71 Fenchurch Street, London, EC3M 4BS, United
Kingdom
TA17 1.0.0
Lloyd’s Register Group Limited, its affiliates and subsidiaries and their respective officers, employees or agents are, individually and collectively, referred
to in this clause as ‘Lloyd’s Register’. Lloyd’s Register assumes no responsibility and shall not be liable to any person for any loss, damage or expense
caused by reliance on the information or advice in this document or howsoever provided, unless that person has signed a contract with the relevant
Lloyd’s Register entity for the provision of this information or advice and in that case any responsibility or liability is exclusively on the terms and
conditions set out in that contract.
