PERSONNEL TRANSFER BASKET 1145-4-C

Product Category

Description

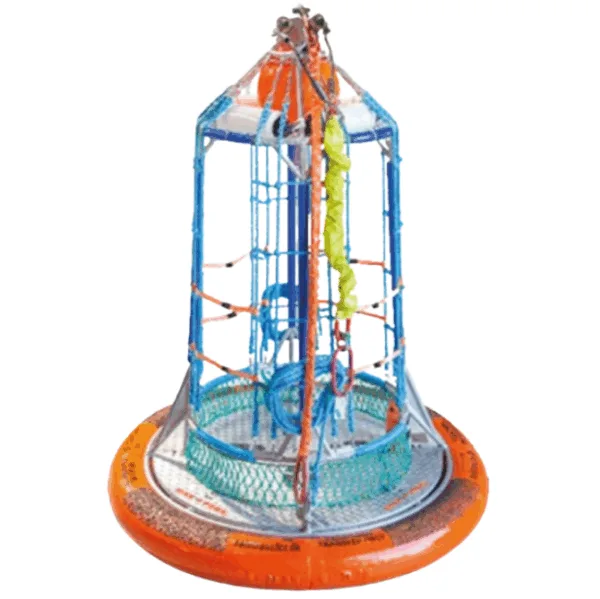

Personnel Basket Arctic Type

A high-quality personnel basket with  space for up to 4 persons

The Personnel Basket C Briefly



The original Safe Transfer personnel basket arctic type is “non-collapsible”, 100% manufactured in the EU, and made of AISI 316L stainless steel welded to form a corrosion-resistant rigid frame. The flooring is made in 5 mm aluminum plates with a non-skid surface.

All screws, nuts and bolts are made in AISI 316 stainless steel to be well protected when in offshore operation offshore

Specifications

  • Height                               3232 mm
  • Diameter (incl. fender)      2600 mm
  • Total weight                      965 kg
  • Self weight                        465 kg
  • SWL                                   500 kg or 4-person
  • Wind speed     15m/s (NLS) 17m/s (LS)
  • Wave Height    3.5mtr.(NLS) 6mtr. (LS)
  • Temperature    -50°C to +70°C





The personnel basket will be delivered with a physical folder containing all certificates, an instruction video on CD and the QA checklist last performed according to our ISO 9001 certification.

Your Safety is our Business

Ensuring, safe, quick and cost-effective personnel transfer between offshore installations, drilling rigs and vessels the Safe Transfer basket is extremely popular.

The basket is constructed to enhance safety and comfort level for personnel during transfers.

Certificates document a high level of security so a number of certificates are listed here. But please have a look at certificates for the Safe Transfer Personnel Basket

Evacuating a Person

The basket can also be adapted with a rescue stretcher for safe evacuation of injured. Thereby will a stretcher equipped to the basket for the safely transport the injured person, while 2 rescuers stand beside the stretcher in the basket. A stretcher adapted for the basket safely transport the injured person, while 2 rescuers stand beside the stretcher in the basket.

The stretcher mounted to the basket by using ratchet straps doesn’t need any other tools to ensure safe and rapid transport of the injured person





Safe Transfer Certificates

  • DNV – Type Approval Certificate
    • The standard for Certification 2.22 Lifting Appliances
  • ABS – PDA Product Design Assessment
  • Danish Technological Institute (Notified Body)
    • Cranes-Equipment for the lifting of persons Part 1. suspended baskets
  • NDT (Non-Destructive Testing) and load test
  • Certified lifting sling
  • European Standard EN 14502-1:2010
