Description

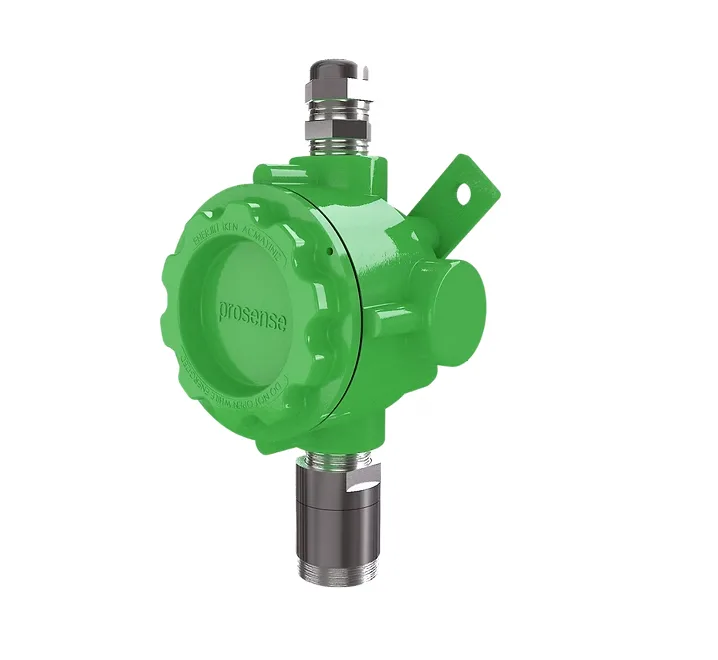

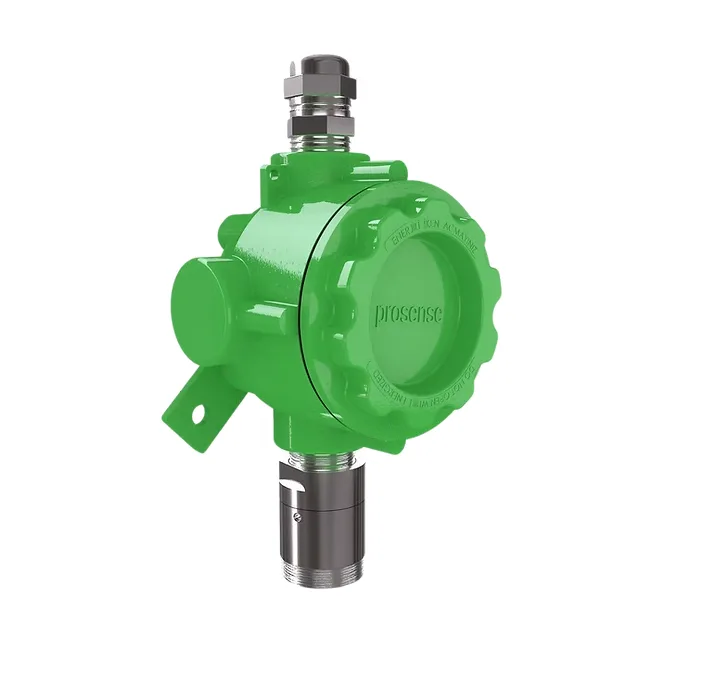

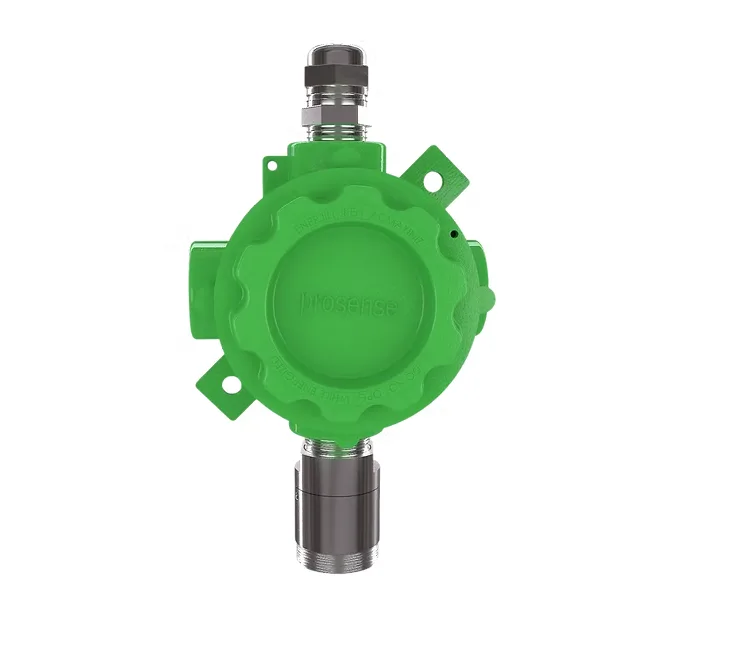

Prosense ATEX, IECEx certified “PE” Series ex-proof gas detectors are designed and developed to detect explosive compounds in many applications as a cost-effective solution.
Catalytic sensors employed PE Series provide excellent output in 0-100%LEL
Specifications
• Catalytic Sensor
• Standard 4-20mA Output
• Optional Relay Outputs(2 Relay Contacts)
• Die-cast aluminum enclosure
• 1/2” NPT Cable Entry
• IP65
• ATEX, IECEx certified
• Suitable to operate in Zone 1 – Zone2
• ATEX Marking: Ex II 2G Ex db IIC T6 Gb
• Sensor: Uses high-quality catalytic sensor specially designed to detect LPG, Methane, Petrol Vapor, Butane, Propane, and Hydrogen gases in 0-100%LEL.
• Certification: ATEX and IECEx certified PE Series ready to use in explosive atmosphere safely
• Connection: Provides universal standard 4-20mA analog output
• Entry: 1 x 1/2″ NPT cable entries
• Body: Aluminum die-cast body and sensor head superb performance under harsh environmental conditions with IP65 protection class.
• Remote Control: Detector status can be monitored Prosense Gas Monitoring software remotely.
• Relay Contacts: PE-2R+ relay module integrated PE Series detectors can manage other equipment or link to firefighting panels
